Solar-ESS Synergy
Direct PV connection cuts conversion loss and boosts power efficiency.
PV + STORAGE ALL-IN-ONE SYSTEM
64K / 112K / 157K / 261K
PV-Storage All-in-One System
An integrated PV-storage system combining solar generation and battery storage in a compact, installation-ready cabinet platform.
PV + STORAGE ALL-IN-ONE SYSTEM
64–261 kWhRated Battery Energy
30–125 kWRated Power Range
PV + ESSIntegrated System
On / Off-GridOperating Modes
KEY ADVANTAGES
Designed around real-world operations
Purpose-built features that support reliable, safe and efficient energy storage operation.
Integrated All-in-One
A highly integrated complete unit with plug-and-play design for efficient installation.
Intelligent O&M
Intelligent scheduling, real-time monitoring, remote upgrade and fault diagnosis.
Core Security
Cell zoning isolation and intelligent fire protection with three-level protection covering cell, module and system.
SYSTEM ARCHITECTURE

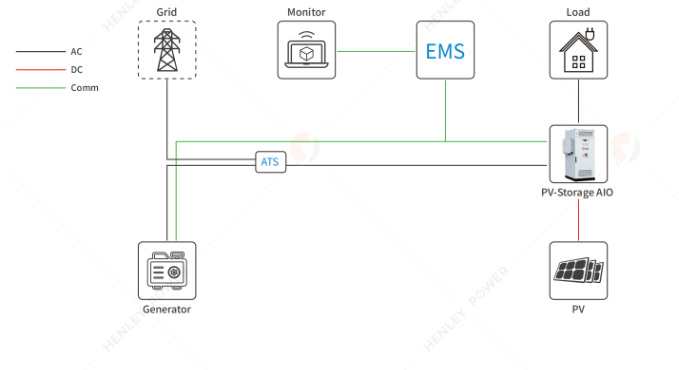

System Configuration
Reference system diagram supplied for this product family.
SYSTEM SPECIFICATION

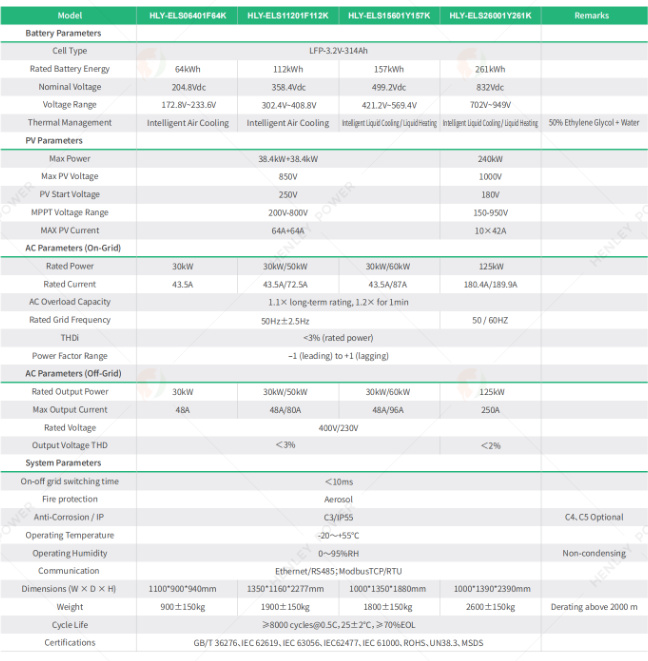

Technical Specifications
PROJECT IMAGES
Product Applications & Project Images
