Integrated Design
Highly integrated cabinet with both AC and DC; supports multi-unit parallel connection, scalable to megawatt level.
COMMERCIAL & INDUSTRIAL ENERGY STORAGE
215K / 232K
Industrial & Commercial Cabinet ESS
An industrial and commercial cabinet ESS range with multiple battery-energy variants, system monitoring, and grid-support functions.
COMMERCIAL & INDUSTRIAL ENERGY STORAGE
215 / 232 kWhRated Battery Energy
100 / 125 kWRated Power
768 / 832 VdcNominal Voltage
IP55Ingress Protection
KEY ADVANTAGES
Designed around real-world operations
Purpose-built features that support reliable, safe and efficient energy storage operation.
Core Safety
Cell partition isolation plus intelligent fire protection; three-level intelligent protection at cell, module, and system level.
Grid-Friendly
Voltage and frequency regulation, three-phase balancing, and feeder management improve power quality and support fast response for primary and secondary frequency regulation.
Economic & Efficient
High-efficiency charge/discharge, intelligent O&M with real-time monitoring, and long cycle life designed to help reduce operating cost.

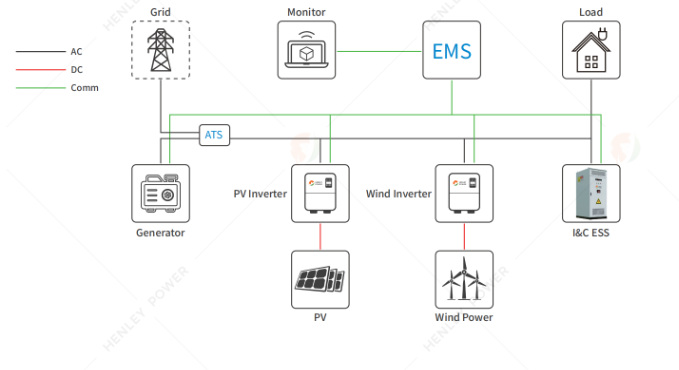

SYSTEM ARCHITECTURE
System Configuration
Reference system diagram supplied for this product family.

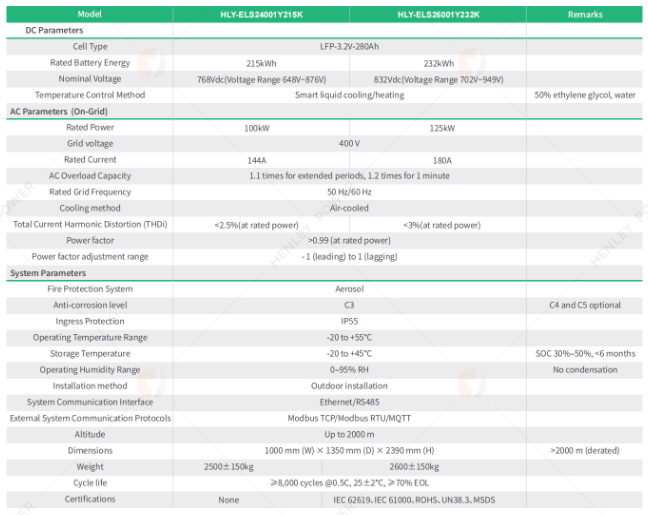

SYSTEM SPECIFICATION
Technical Specifications
PROJECT IMAGES
Product Applications & Project Images
